The Dynamic Cone Penetrometer, or DCP, is widely used by Australian geotechnical and pavement engineers to assess the in-situ penetration resistance of soils, subgrades, and unbound pavement materials.
In Australia, the standard DCP test is generally undertaken in accordance with AS 1289.6.3.2 (Determination of the penetration resistance of a soil, 9 kg dynamic cone penetrometer test). The test provides a rapid field method for profiling relative strength with depth and identifying weak, variable, or poorly compacted layers.
The DCP does not directly measure stiffness, density, or CBR. It measures penetration resistance, which may then be interpreted using project-specific criteria, empirical correlations, or local calibration data.
In Australia and New Zealand, the 9 kg DCP is also widely known as the Scala Penetrometer, after A.J. Scala, who first presented the method at the Second Australia–New Zealand Conference on Soil Mechanics and Foundation Engineering in 1956 as a simple in-situ alternative to laboratory CBR testing. The names are used interchangeably on Australian sites and in older specifications, though "DCP" and "AS 1289.6.3.2" are now the more common technical references.
What Is a Dynamic Cone Penetrometer?
A Dynamic Cone Penetrometer is a hand-operated penetration test device. It consists of a drop hammer, guide rod, anvil, drive rods, and a steel cone. During testing, the hammer is repeatedly lifted to a standard height and released, driving the cone into the ground.
The amount of penetration per hammer blow provides an indication of the resistance of the material. Stronger or denser materials produce lower penetration per blow, while weaker or looser materials produce higher penetration per blow.
The main field output is commonly reported as either:
- Penetration per blow, typically in
mm/blow - Blows per 100 mm, commonly used in Australian pavement and earthworks specifications
- Cumulative penetration versus cumulative blows, used to develop a DCP profile with depth
For Australian projects, the reporting format should be confirmed against the relevant project specification, road authority test method, or acceptance criteria.
DCP Equipment (Australia)
For Australian Standard testing, the apparatus should comply with AS 1289.6.3.2. The Australian Standard DCP is not necessarily the same as some overseas DCP configurations.
A typical AS 1289.6.3.2 DCP assembly includes:
| Component | Australian Standard DCP Requirement / Function |
|---|---|
| Drop hammer | Nominal 9 kg hammer |
| Drop height | Nominal 510 mm free fall |
| Guide rod | Keeps the hammer travel vertical and consistent |
| Anvil | Transfers hammer impact energy to the drive rod |
| Drive rods | Steel rods used to transmit force to the cone |
| Cone | Hardened steel cone, typically 20 mm diameter with a 30° cone angle, subject to the current standard |
| Measuring system | Steel rule, graduated scale or electronic depth measurement system |
| Couplings | Connect rods and maintain alignment during driving |
Do not assume that an imported or international DCP is suitable for Australian Standard testing. Many overseas devices use an 8 kg hammer, 575 mm drop height and 60° cone, which are common in other methods but are not the same as the Australian Standard 9 kg DCP configuration.
Australian Standards and References
The DCP is commonly specified alongside other Australian geotechnical and pavement test methods.
| Standard / Reference | Relevance |
|---|---|
| AS 1289.6.3.2 | Determination of penetration resistance of a soil using the 9 kg dynamic cone penetrometer |
| AS 1289.5 series | Soil compaction and density testing, often used with DCP results for earthworks control |
| AS 1289.6.1.1 | California Bearing Ratio testing, used where DCP-to-CBR calibration or verification is required |
| Austroads Guide to Pavement Technology | Pavement investigation, rehabilitation and materials assessment |
| State road authority specifications | Project-specific DCP requirements, acceptance limits and reporting formats |
| TfNSW, TMR, DTP/VicRoads, Main Roads WA, DIT SA and other road authority documents | Local requirements for roadworks, pavement investigation and earthworks conformance |
Always check the current project specification. State road authorities and asset owners may nominate specific test frequencies, refusal criteria, reporting units or acceptance thresholds.
Origin of the Method
The DCP/Scala method and its CBR correlation trace back to A.J. Scala's original paper, Simple Methods of Flexible Pavement Design Using Cone Penetrometers, presented at the Second Australia–New Zealand Conference on Soil Mechanics and Foundation Engineering, Christchurch, January 1956. Scala's original work correlated penetrometer resistance, then expressed as blows per 25 mm, directly against CBR using a reference chart. The relationship has since been refined and is now applied through AS 1289.6.3.2 using the DPI (mm/blow) form set out below.
When Is DCP Testing Used?
DCP testing is used when a rapid assessment of the condition of near-surface ground or pavement layers is required.
Common applications include:
- Pavement investigation for roads, hardstands, car parks, and airfields
- Subgrade assessment for new pavement design
- Rehabilitation investigations for existing pavements
- Earthworks quality control and uniformity checks
- Identification of weak, soft or variable zones
- Estimation of layer thicknesses in unbound pavements
- Assessment of compacted fill performance
- Forensic investigation of pavement failures
- Preliminary investigation for lightly loaded structures, access tracks and working platforms
- Bearing assessment for footings of lightly to moderately loaded structures (larger or more heavily loaded structures, including bridges, typically require borehole, CPT or SPT investigation in addition to DCP)
- Compaction and load-bearing checks on placed or reclaimed fill in land reclamation and site formation works
- Verifying compaction of engineered capping, cover systems or containment cells on remediated or landfill sites
The DCP is particularly useful where many test points are required quickly across a site.

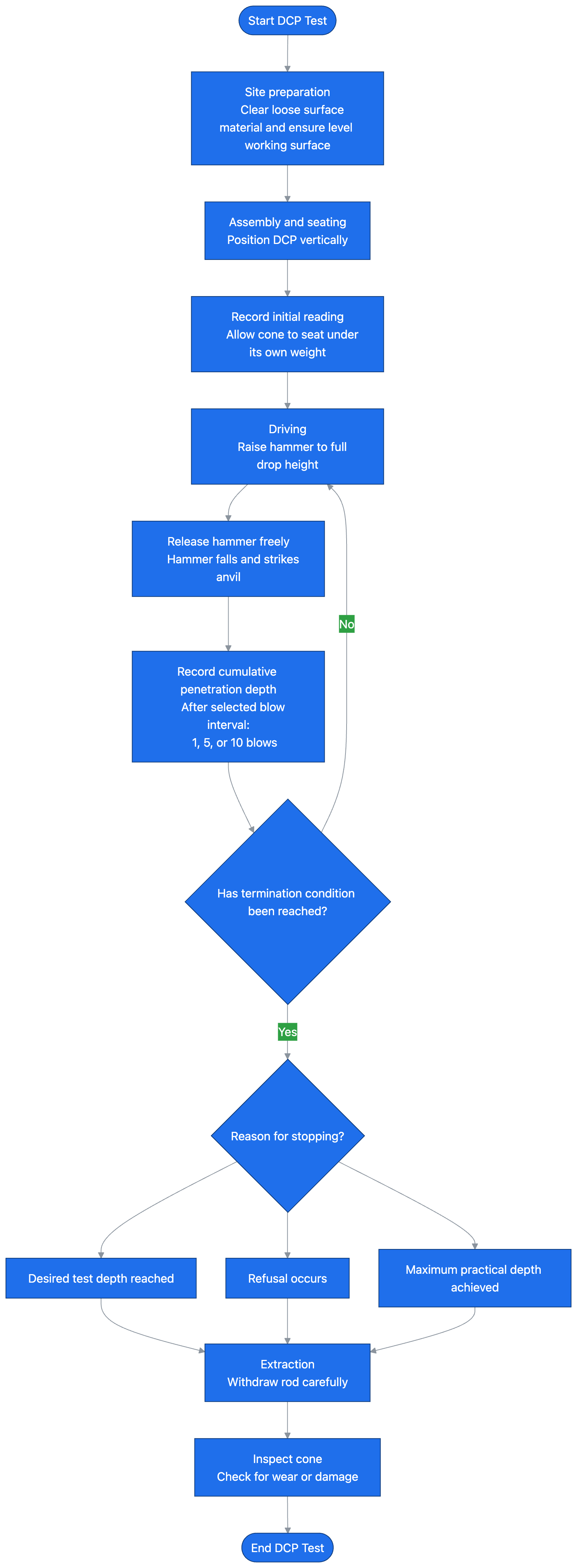

DCP Test Procedure (Australian Standard)
The general test procedure below reflects typical Australian practice. The current version of AS 1289.6.3.2 and the project specification should always take precedence.
1. Select the Test Location
Choose a representative location and record relevant site details, including:
- Chainage, offset or coordinates
- Surface condition
- Pavement layer, subgrade or fill description
- Moisture condition
- Recent rainfall or watering
- Test date and operator
- Test method and equipment identification
Avoid locations directly over large surface stones, obvious obstructions or disturbed material unless these are the specific features being investigated.
2. Prepare the Surface
Remove loose material from the test location and form a reasonably level surface. For pavement investigations, the DCP may be carried out from the top of an exposed layer, through a test pit, or through a drilled/cored access hole, depending on the investigation objective.
Where testing starts below a sealed surface, record the thickness and type of surfacing removed.
3. Assemble and Seat the DCP
Assemble the DCP with the correct cone and rods. Hold the device vertical and seat the cone at the test location.
Record the initial reading before driving commences. The starting level should be clearly defined, particularly where the test commences below pavement surfacing or within a test pit.
4. Drive the Cone
Lift the 9 kg hammer to the specified drop height and allow it to fall freely onto the anvil. Do not push down on the device or restrain the hammer during its fall.
Maintain the DCP as close to vertical as practical throughout the test.
5. Record Penetration
Record the cumulative penetration and cumulative number of blows at suitable intervals. The interval may depend on the penetration rate and the project requirement.
Typical recording approaches include:
- Depth after every blow in soft materials
- Depth after every 5 blows in moderate materials
- Depth after every 10 blows in stronger materials
- Blows required for each 100 mm increment, where specified
Frequent readings are preferred where layer changes are expected.
6. Continue to Target Depth or Refusal
Continue the test until one of the following occurs:
- Target test depth is reached
- Refusal is encountered
- The cone reaches a hard layer, rock, cemented material or large aggregate
- Rod friction or deviation makes results unreliable
- The practical test depth is exceeded
- The project specification requires termination
The practical depth of DCP testing is commonly limited to near-surface investigation depths. Rod friction, bending and side resistance can become significant with depth, particularly in stiff or granular materials.
7. Withdraw and Inspect Equipment
After testing, withdraw the rods and inspect the cone and rods for damage. A worn or damaged cone can significantly affect results and should not be used for conforming tests.
How to Report DCP Results
DCP results should be reported clearly and in a format suitable for geotechnical or pavement interpretation.
A typical DCP report includes:
- Project name and test location
- Test method, usually AS 1289.6.3.2
- Equipment identification
- Hammer mass and drop height
- Cone type and condition
- Surface level and starting depth
- Cumulative blows
- Cumulative penetration
- Penetration rate in
mm/blow, where required - Blows per 100 mm, where required
- Inferred layer boundaries
- Refusal depth, if encountered
- Moisture condition and material description
- Any deviations from the standard method
The most useful presentation is generally a plot of cumulative blows versus depth or DCP penetration rate versus depth.
DCP Penetration Index
The DCP Penetration Index, often abbreviated as DPI or DCPI, is calculated as:
\[ DPI = \frac{\text{Penetration over interval } (mm)}{\text{Number of blows over interval}} \]where:
- \(DPI\) is expressed in `mm/blow`
- Lower \(DPI\) values indicate higher penetration resistance
- Higher \(DPI\) values indicate lower penetration resistance
For example, if the cone penetrates 100 mm in 5 blows:
\[ DPI = \frac{100}{5} = 20 \text{ mm/blow} \]Alternatively, the result may be expressed as:
\[ \text{Blows per 100 mm} = \frac{100}{DPI} \]In this example:
\[ \text{Blows per 100 mm} = \frac{100}{20} = 5 \]Australian earthworks and pavement specifications often use blows per 100 mm, while research correlations commonly use mm/blow.
Interpreting DCP Profiles
A DCP profile is used to identify changes in penetration resistance with depth. These changes often correspond to:
- Pavement layer boundaries
- Weak subgrade zones
- Moisture-softened material
- Poorly compacted fill
- Loose granular layers
- Cemented or bound layers
- Rock, cobbles, or oversize particles
- Variable natural soil profiles
Interpretation should consider the material type. The same DCP result can have different implications in clay, sand, gravel, crushed rock, or recycled material.
For example:
| DCP Response | Possible Interpretation |
|---|---|
| Low penetration per blow | Dense, stiff, cemented or high-strength material |
| High penetration per blow | Soft, loose, wet or weak material |
| Sudden increase in resistance | Transition into stronger layer, gravel, cemented material or obstruction |
| Sudden decrease in resistance | Weak layer, void, soft subgrade or poorly compacted zone |
| Erratic readings | Gravel, cobbles, construction debris, variable fill or rod alignment issues |
| Refusal | Rock, bound pavement, large aggregate, buried obstruction or very dense layer |
DCP data should not be interpreted in isolation. It is most reliable when supported by visual logging, test pits, boreholes, moisture content testing, density testing, or laboratory strength testing.
Correlation Between DCP and CBR
DCP results are often used to estimate in situ California Bearing Ratio (CBR), particularly for pavement subgrade assessment. However, CBR correlations are empirical and are not a substitute for project-specific engineering judgment.
This is the same correlation Scala originally developed in 1956, since re-expressed in DPI (mm/blow) terms rather than the original blows-per-25-mm form.
A widely used correlation is:
\[ \log_{10}(CBR) = 2.48 - 1.057 \log_{10}(DPI) \]where:
- \(CBR\) is expressed as a percentage
- \(DPI\) is expressed in `mm/blow`
This can also be written as:
\[ CBR = 10^{2.48 - 1.057 \log_{10}(DPI)} \]The correlation is commonly used for preliminary pavement assessment, but it should be applied cautiously.
Important limitations include:
- The relationship is empirical
- It may not be valid for all Australian soils or crushed rock materials
- It can be affected by moisture conditions
- It may not apply to cemented, stabilised, or bound layers
- It should not replace laboratory CBR testing where design confidence is required
- Local calibration is recommended for important pavement design work
For design, the selected CBR should consider soaked CBR testing, field moisture conditions, material classification, compaction, seasonal moisture variation, and road authority requirements.
DCP Testing for Pavement Investigations
For pavement engineering, DCP testing is commonly used to evaluate the existing pavement structure and subgrade support.
The test can assist with:
- Estimating unbound pavement layer thickness
- Locating weak subgrade areas
- Comparing distressed and non-distressed pavement areas
- Supporting rehabilitation design
- Selecting locations for test pits or sampling
- Estimating relative subgrade CBR
- Assessing variability along a road alignment
For existing sealed pavements, the surface is often cored or broken out before testing. The depth and type of surfacing should be recorded so the DCP profile can be related to the pavement structure.
Where crushed rock or granular pavement layers contain large aggregate, DCP results can be variable. Isolated high resistance readings may reflect aggregate obstruction rather than true layer strength.
DCP Testing for Earthworks Control
DCP testing can be useful for earthworks quality control, particularly as a rapid check of uniformity. It may help identify zones that require further compaction, drying, moisture conditioning or replacement.
However, DCP testing should not be treated as a direct replacement for density ratio, moisture ratio or Hilf density testing unless permitted by the project specification.
For earthworks, DCP results should be assessed in conjunction with:
- Field density testing
- Moisture content testing
- Material classification
- Layer thickness
- Compaction method
- Proof rolling observations
- Lot conformance requirements
DCP acceptance criteria should be project-specific and preferably based on local calibration for the material being placed.
Advantages of DCP Testing
The DCP is popular because it is simple, portable and fast.
Key advantages include:
- Rapid field assessment
- Low equipment cost
- Minimal site disturbance
- Immediate results
- Suitable for remote or constrained sites
- Provides a continuous resistance profile with depth
- Useful for identifying weak or variable zones
- Can support pavement rehabilitation and subgrade assessment
- Requires a relatively simple site setup
Limitations of DCP Testing
DCP testing has important limitations that must be considered by Australian geotechnical engineers.
Limitations include:
- Results are empirical and material-dependent
- Not suitable for rock, bound pavement, cemented layers or large cobbles
- Coarse gravel and oversize particles can cause misleading results
- Rod friction may affect results at depth
- Equipment configuration must match the specified method
- Results are sensitive to moisture conditions
- Operator technique can influence results
- Cone wear can affect penetration resistance
- Correlation to CBR requires caution
- Testing provides penetration resistance, not direct stiffness or density
The DCP is best used as part of a broader site investigation or pavement assessment, not as the sole basis for critical design decisions.
Best Practice for Australian DCP Testing
For reliable DCP results:
- Use equipment that complies with AS 1289.6.3.2
- Confirm the required method before testing
- Check whether the project requires blows per 100 mm or
mm/blow - Inspect the cone before and after testing
- Keep the device vertical during driving
- Allow the hammer to fall freely through the full drop height
- Record readings at sufficiently close intervals
- Record material type, moisture condition and surface condition
- Undertake multiple tests to assess variability
- Compare DCP results with test pits, boreholes or laboratory testing
- Use CBR correlations only where appropriate
- Apply state road authority criteria where relevant
- Document any deviation from the standard method
Where DCP results are being used for pavement design, laboratory CBR testing and material classification should be undertaken where required by the design standard or asset owner.
Reporting Units
| Reporting Unit | Meaning | Typical Use |
|---|---|---|
mm/blow |
Penetration per hammer blow | DCP correlations and technical analysis |
| Blows per 100 mm | Number of blows required to penetrate 100 mm | Road authority specifications and field reporting |
| Cumulative blows | Total number of blows from start of test | DCP profile plotting |
| Cumulative penetration | Total penetration from start of test | Depth profiling |
| Estimated CBR | Empirical estimate derived from DCP | Preliminary pavement and subgrade assessment |
