Earthworks are the foundation of almost every civil engineering and construction project. Before construction begins, you need to prepare the ground beneath the structure.
For a stable, long-lasting platform that supports the loads placed upon it, you need good earthworks because poor earthworks can lead to settlement, cracking, pavement failure, drainage problems, and even structural damage.
What Are Earthworks?
Earthworks involve the excavation, processing, movement, and placement of soil, rock, and other earth materials to alter existing ground conditions for construction purposes.
Core Activities
- Excavation: Removing soil or rock from the ground (cuttings, foundations, trenches)
- Filling: Placing and building up material to raise ground levels (embankments)
- Compaction: Densifying soil to improve strength and reduce settlement
- Grading/Levelling: Shaping the ground to the desired profiles and gradients
- Hauling: Transporting materials between cut and fill areas

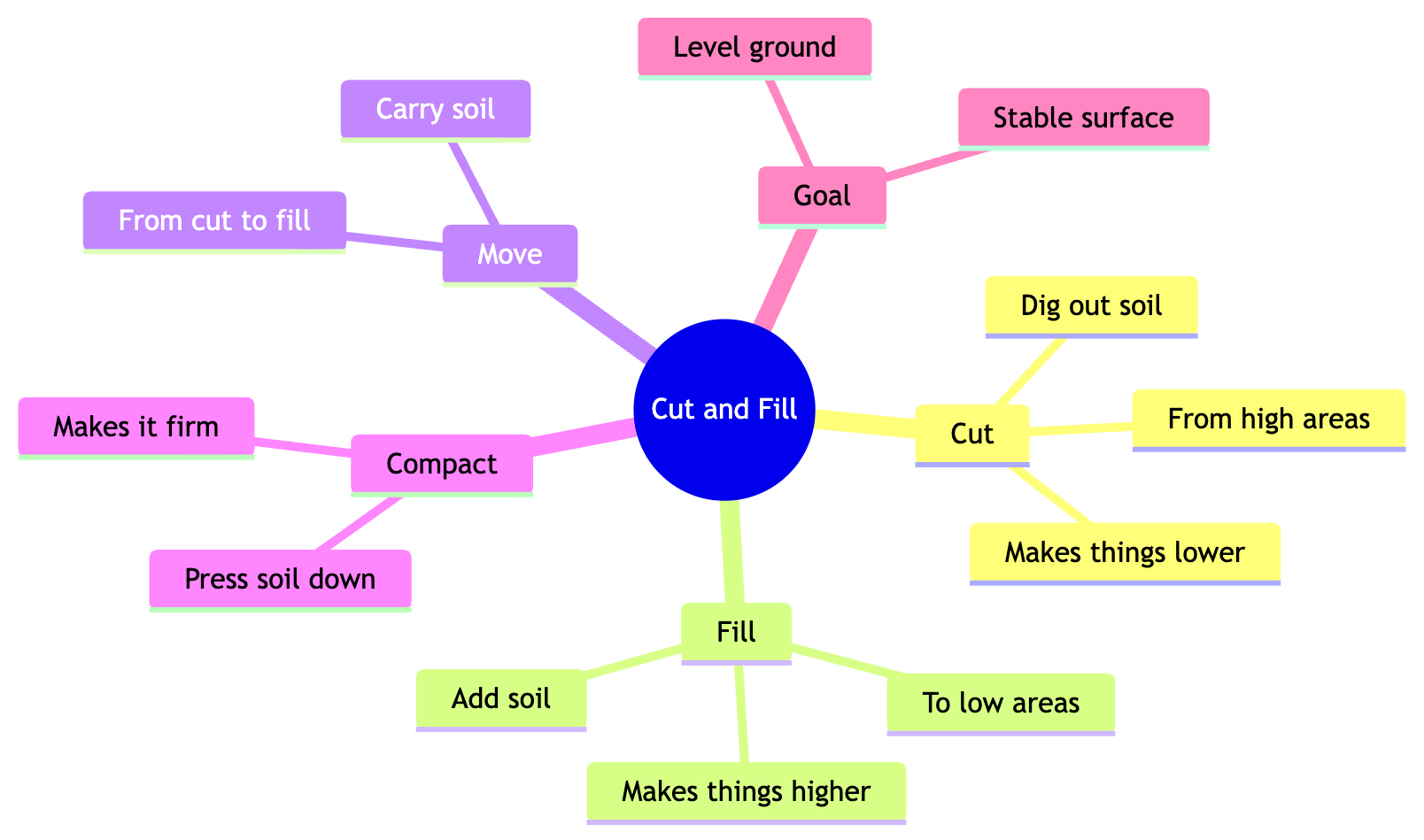

Cut and Fill
Most sites aren't flat. To create a level building platform, engineers balance two operations:
- Cut → soil is excavated from the high parts of the site.
- Fill → that soil (if suitable) is moved to the low parts to build them up.
Cut and fill is a bulk earthworks technique used to level uneven terrain for construction.
A well planned has the amount cut roughly equals the amount filled. This is called a cut-and-fill balance, and it saves money because you don't have to truck soil in or cart it away. It involves excavating soil from higher elevations (the "cut") and redistributing it to lower areas (the "fill").
Key idea: Not all the soil you dig up can be reused. Topsoil, organic material, and very wet or contaminated soil usually has to be removed and replaced with better material.
Cut-and-Fill Process
| Decision | Purpose |
|---|---|
| Mass Haul Balance? | Determines if cut volume matches fill needs, minimizing import/disposal costs |
| Material Suitable? | Checks if excavated soil meets fill specifications (e.g., not organic or contaminated) |
| Compaction Test Pass? | Verifies each layer meets density requirements before proceeding |
| Design Level Reached? | Confirms whether more fill layers are needed |

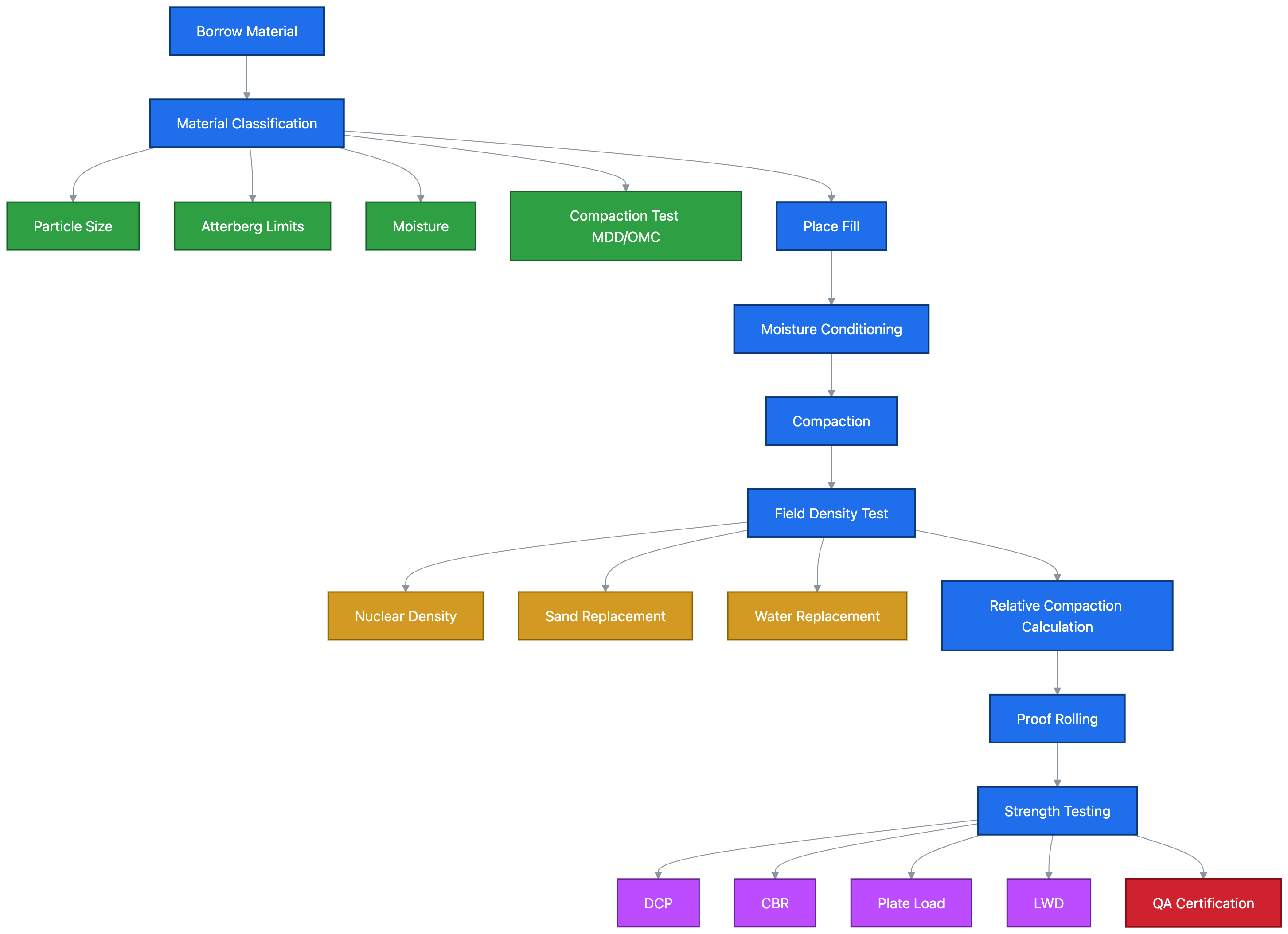

Earthwork and Compaction Quality Control
Compaction Quality Control (QC) makes sure that soil or asphalt is properly compressed during construction so it becomes dense, strong, and stable.
Moisture Content Tests
These determine whether the material is at or near its Optimum Moisture Content (OMC).
| Test | Standard | Field/Lab | Purpose |
|---|---|---|---|
| Moisture Content (Oven Dry) | AS 1289.2.1.1 | Laboratory | Reference moisture |
| Speedy Moisture Test | AS 1289.2.1.4 | Field | Rapid moisture |
| Microwave Moisture | Project-specific | Lab | Fast laboratory testing |
Frequency:
- Every density test
- Every material change
- During proof rolling
Laboratory Compaction Tests
Used to determine:
- Maximum Dry Density (MDD)
- Optimum Moisture Content (OMC)
These become the target values for field compaction.
| Test | Standard | Typical Use |
|---|---|---|
| Standard Compaction | AS 1289.5.1.1 | Residential earthworks |
| Modified Compaction | AS 1289.5.2.1 | Roads, pavements, heavy structures |
| One Point Compaction | AS 1289.5.4.1 | Rapid field control |
Outputs
- Maximum Dry Density
- Optimum Moisture Content
- Moisture-density curve
Field Density Tests
These are the primary QC tests.
Nuclear Density Gauge (NDG)
Standard: AS 1289.5.8.1
Measures:
- Wet density
- Dry density
- Moisture
- Relative Compaction (RC)
Relative Compaction (RC)
Calculated rather than directly tested.
Formula
Typical specifications
| Application | Requirement |
|---|---|
| Residential fill | 95% Standard |
| Structural fill | 98% Standard |
| Road subgrade | 98% Modified |
| Basecourse | 100% Modified |
California Bearing Ratio (CBR)
Standard
AS 1289.6.1.1
Measures
Bearing capacity of compacted soil.
Used for
- Roads
- Pavements
- Airports
Plate Load Test
Measures
- Bearing capacity
- Settlement
- Modulus
Often used on
- Working platforms
- Crane pads
- Industrial slabs
Dynamic Cone Penetrometer (DCP)
Standard: AS 1289.6.3.2
Measures:
- Strength profile
- Uniformity
- Estimated CBR
Very common for road projects.
Lightweight Deflectometer (LWD)
Measures:
- Elastic modulus
- Compaction quality
Increasingly used because it provides immediate stiffness measurements.
Benkelman Beam
Measures
Pavement deflection.
Used mostly by road authorities.
Falling Weight Deflectometer (FWD)
Large pavement testing equipment.
Measures
- Pavement stiffness
- Layer performance
Usually, QA rather than daily QC.
Proof Rolling
Visual assessment using heavy machinery.
Checks for
- Soft spots
- Pumping
- Rutting
- Instability
Proof Rolling is often mandatory before placing pavement layers.
Atterberg Limits
Standard: AS 1289.3.1.1
Determines:
- Liquid Limit
- Plastic Limit
- Plasticity Index
Used to classify soils and confirm material compliance.
Particle Size Distribution (Sieve Analysis)
Standard: AS 1289.3.6.1
Determines
- Gravel
- Sand
- Silt
- Clay proportions
Used to verify imported fill.
Hydrometer Analysis
Hydrometer Analysis is used for fine-grained soils that cannot be adequately analysed by sieving.
Linear Shrinkage
Measures
Shrink/swell potential.
Important for expansive clays.
Emerson Class Number
Emerson Class is a soil dispersibility test in Australia.
Used for
- Earth dams
- Embankments
- Erosion assessment
Soil Classification
Using the Australian Standard Soil Classification (ASSC).
- Gravel
- Sand
- Clay
- Silt
- Organic soils
Permeability Testing
Measures:
Water movement through compacted soil.
- Dams
- Landfills
- Liners
- Embankments
Shear Strength Testing
- Direct Shear
- Triaxial Compression
- Unconfined Compression
- Vane Shear
Usually, laboratory QA.
Earthworks Inspection
Inspections are a critical part of quality control.
- Foundation inspection
- Stripping verification
- Unsuitable material removal
- Layer thickness verification
- Moisture conditioning
- Compaction plant suitability
- Lift thickness checks
- Final proof roll
- Finished level survey
Common Tests by Project Type
| Test | Residential | Roads | Rail | Commercial | Mining |
|---|---|---|---|---|---|
| Moisture Content | ✓ | ✓ | ✓ | ✓ | ✓ |
| Standard Compaction | ✓ | ✓ | ✓ | ✓ | ✓ |
| Modified Compaction | Sometimes | ✓ | ✓ | ✓ | ✓ |
| Nuclear Density | ✓ | ✓ | ✓ | ✓ | ✓ |
| Sand Replacement | ✓ | ✓ | ✓ | ✓ | ✓ |
| Relative Compaction | ✓ | ✓ | ✓ | ✓ | ✓ |
| Proof Rolling | ✓ | ✓ | ✓ | ✓ | ✓ |
| DCP | Sometimes | ✓ | ✓ | ✓ | ✓ |
| CBR | Sometimes | ✓ | ✓ | ✓ | ✓ |
| Plate Load | Rare | Sometimes | ✓ | ✓ | ✓ |
| LWD | Rare | Increasing | ✓ | ✓ | ✓ |
