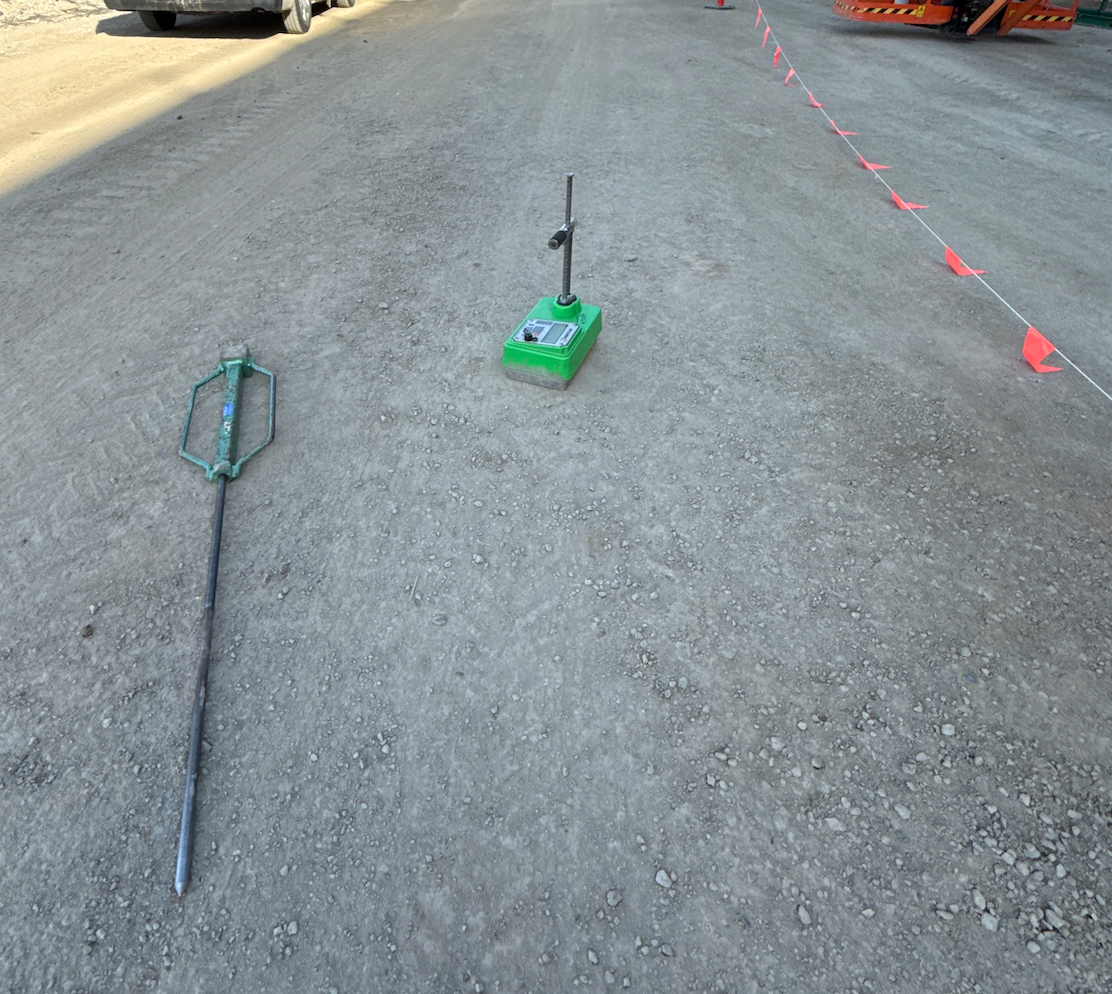

A nuclear density gauge (also called a moisture-density gauge) is a portable instrument that rapidly measures the in situ density and moisture content of compacted soils, aggregates, and asphalt. It is one of the most common methods used in Australia to check earthworks and pavement compaction quality.

The test is performed in accordance with AS 1289.5.8.1, which covers the determination of field density and field moisture content using a nuclear surface moisture-density gauge in direct transmission mode.

In Australia, many companies use Nuclear Density Gauges equipment like HS-5001EZ from Humboldt, 3500 Xplorer from InstroTek, etc.

The test is used for:

• General earthworks
• Structural fill
• Road embankments
• Pavement subgrades
• Select fill layers
• Working platforms
• Trench backfill
• Hardstand areas
• Subbase and basecourse materials

How the Nuclear Density Gauge Works

The gauge uses radioactive sources to measure density and moisture.

For density testing, the gauge emits radiation into the soil. The amount of radiation detected by the gauge is related to the density of the material.

For moisture testing, the gauge detects hydrogen content in the soil, which is used to estimate moisture content.

In Australian earthworks testing, the direct transmission method is commonly used. A probe is inserted into a prepared hole in the compacted layer, that allows the gauge to measure density through the soil layer.

The gauge uses two radioactive sources:

Detectors (Geiger-Müller tubes) count the radiation reaching them. Higher counts = lower density (more radiation passes through).

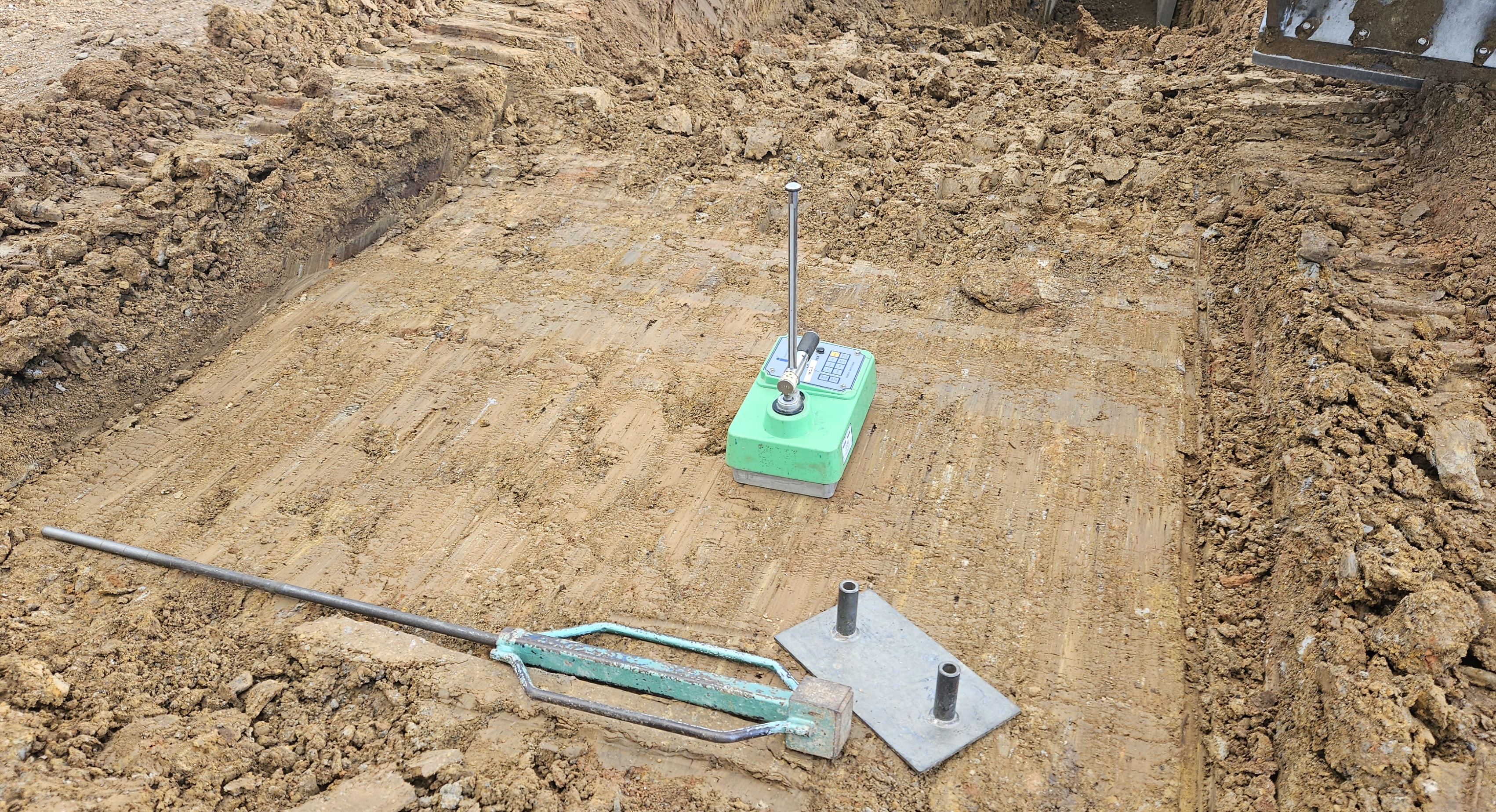

Field Density Testing Using a Nuclear Density Gauge

A nuclear density gauge (also called a nuclear densometer or moisture-density gauge) is a portable instrument used to rapidly measure the in-situ density and moisture content of compacted soils, aggregates, and asphalt. It is widely used for quality control of earthworks and pavement construction.

How It Works

The gauge uses two radioactive sources:

Detectors (Geiger-Müller tubes) count the radiation reaching them. Higher counts = lower density (more radiation passes through).

Measurement Modes

1. Direct Transmission (most accurate)

• A source rod is lowered into a pre-drilled hole (50–300 mm depth).
• Gamma rays travel directly from the source through the soil to detectors.
• Preferred for soils and base materials.

2. Backscatter

• The source remains on the surface; radiation is scattered back to detectors.
• Non-destructive (no hole required).
• Used for asphalt or where drilling is impractical.
• Tests only the top ~50–75 mm.

Australian Standard

The main Australian Standard is:

AS 1289.5.8.1 — Methods of testing soils for engineering purposes: Soil compaction and density tests — Determination of field density and field moisture content of a soil using a nuclear surface moisture-density gauge.

This method is used for determining field density and moisture content using a nuclear surface moisture-density gauge.

Road authorities may also use their own methods based on AS 1289.5.8.1. For example, TfNSW Test Method T173 is based on AS 1289.5.8.1 for NDG testing of earthworks and pavement materials.

What the Test Measures

A nuclear density gauge can provide:

• Wet density
• Dry density
• Moisture content
• Degree of compaction
• Relative compaction
• Air voids, if required by the specification

The most important result is usually Relative Compaction.

Relative Compaction

Relative Compaction compares the field dry density with the laboratory Maximum Dry Density.

Relative Compaction (%) =
(Field Dry Density ÷ Maximum Dry Density) × 100

The Maximum Dry Density is usually obtained from a laboratory compaction test, such as:

• AS 1289.5.1.1 Standard Compaction
• AS 1289.5.2.1 Modified Compaction

Test Procedure

1. Calibrate / take a standard count on the reference block (daily check for source decay and drift).
2. Prepare the surface smooth and level the test area; fill voids with fine sand if needed.
3. Drill the access hole (for direct transmission) using the guide plate and drive pin, ~50 mm deeper than the test depth.
4. Position the gauge and lower the source rod to the desired depth.
5. Take the reading (typically 1–4 minute count).
6. Record wet density, dry density, moisture content, and percent compaction.
7. Move and repeat for multiple test points across the lot.

What Should Be Included in a Test Report?

A field density test report should typically include:

• Project name and location
• Test location
• Chainage, offset, lot number, or grid reference
• Date of testing
• Test method
• Material description
• Layer tested
• Depth of test
• Wet density
• Dry density
• Moisture content
• Assigned MDD and OMC
• Relative compaction
• Specification requirement
• Pass/fail status
• Gauge identification
• Technician name
• Laboratory details
• NATA accreditation details, where applicable

Typical Compaction Requirements

Typical earthworks specifications require 95–100% of the Modified Proctor maximum dry density.

Advantages & Limitations

Advantages

• Fast results (1–4 minutes) — enables real-time QC
• Non-destructive (backscatter) or minimally destructive
• Many readings per shift; good for production testing
• Measures both density and moisture simultaneously

Limitations

• Requires regular calibration and standardisation
• Moisture readings can be affected by chemically bound hydrogen (e.g., lime, organics, gypsum)
• Surface preparation affects accuracy

Check the following items to avoid common mistakes

• Testing the wrong layer
• Using an incorrect MDD value
• Poor test site preparation
• Incorrect probe depth
• Testing material with excessive oversize rock
• Not allowing for material changes
• Testing too close to edges or obstructions
• Relying only on NDG results without visual inspection
• Continuing to place fill before failed areas are rectified

NDG testing is only one part of earthworks quality control. It should be used together with:

• Material classification
• Laboratory compaction testing
• Moisture control
• Lift thickness control
• Proof rolling
• Site inspections
• DCP or CBR testing where required
• Engineer review and certification
